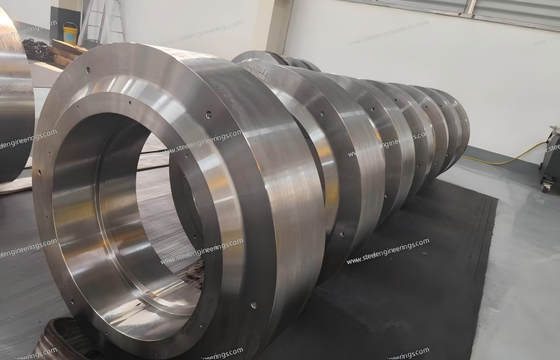

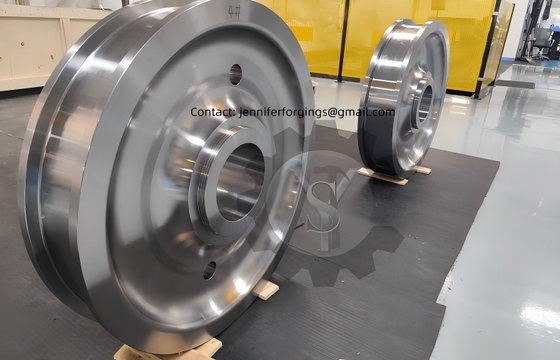

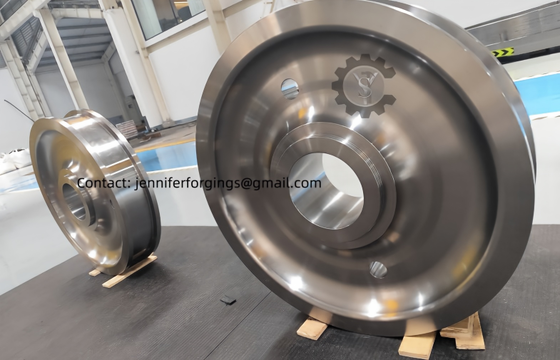

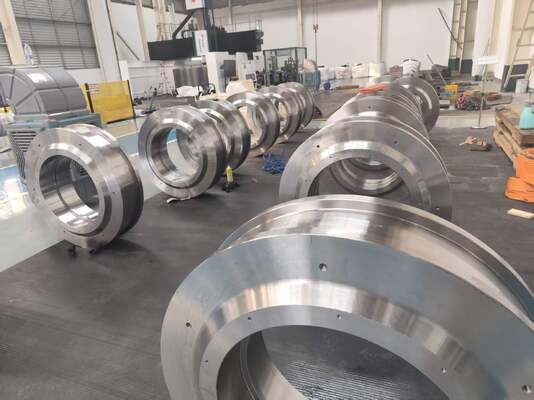

EN 26 AS1444 - X9940-X Crane wheels, wheel forging, alloy steel wheel ring forging trunnion wheel
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
| Delivery Time | 30 days or as per the exact product |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 200 pieces |
Product Details
| Yieldstrength | 1005 MPa Min. | Hardness | HRC 45-55 |
|---|---|---|---|
| Application | Crane Wheels For Heavy Lifting Equipment | Productname | Crane Wheel Trunnion Wheel Forging |
| Surfacefinish | Machined | Corrosionresistance | Grease |
| Weight | 100-1500 Kg | Impactresistance | High |
| Material | Alloy Steel | Heattreatment | Quenching And Tempering |
| Manufacturingprocess | Hot Forging | Tensilestrength | 850-1100 MPa |
| Tolerance | ±0.1 Mm |
Product Description
EN 26 AS1444 - X9940-X Crane wheels, wheel forging, alloy steel wheel ring forging trunnion wheel
Alloy steel, EN26 (AS 1444-X9940-X), Crane wheels, wheel froging, alloy steel weel, ring forgings, trunnion wheel
Quick Detail:
1. Alloy steel, EN26, AS 1444-X9940-X
2. Crane wheels, trunnion wheel
3. Non-standard and common or uncommon sizes diameter sizes
Description:
These wheel forgings used for heavy cranes and trunnion wheels. Gennerally, the material is : En 26 (AS 1444-X9940-X and 42CrMo4), The general hardness is ≧380 HB, We test the hardness by KING tester.
Forging standard: ASTM A 668/A668M
Tensile strength≧1150MPa; Yield strength ≧1005MPa; Elongation A% ≧12
Chemical composition test and mechanical properties are performed by CNAS laboratory; The SGS witness the final inspection for measurement, KING test, Ultrasonica test and Wet Fluorescent Magnetic Particle test.
Specifications:
|
Description |
EN 26 AS1444 - X9940-X Crane wheels, wheel forging, alloy steel wheel ring forging trunnion wheel |
|
material |
Alloy steel (EN 26 AS1444 - X9940-X ) |
|
Material standard |
ASTM, En or ISO |
|
Dimension |
Max.OD: 5000mm Max. thickness: 1000mm Max. height: 1500mm |
|
Weight |
Max. 30 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
ASTM A388 , EN10228, AS 1065 |
Applications:
Our forged crane wheels are widely used in overhead cranes, gantry cranes, port cranes, container cranes and heavy-duty material handling systems. They serve as critical travel wheels for crane bogies, end carriages and rail-mounted equipment under high load and frequent operation conditions.
Competitive Advantage:
We adopt high-quality alloy steel and professional forging technology to ensure high tensile strength, good wear resistance and long service life. All crane wheels are strictly inspected through dimensional check, hardness testing, UT, MT and chemical analysis before delivery.
Why us?
1. Good mechanical properties;
2. High tensile strength;
3. Well-closed formation;
4. Comparative price;
5. High-quality production;
6. Customized services, manufacturing according to your specific requirements.
