GB Material Standard Turbine Rotor Designed for Industrial Machinery Providing Stable Operation and Extended Service Life

Product Description:

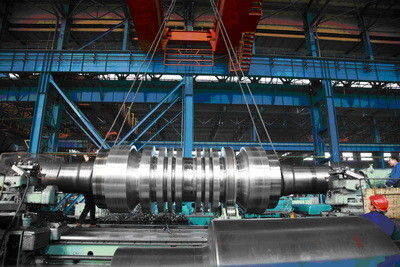

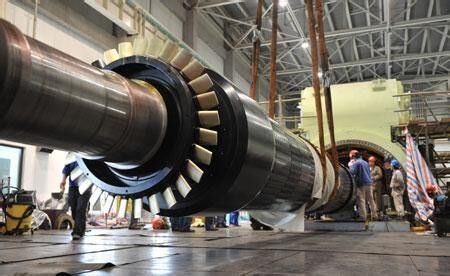

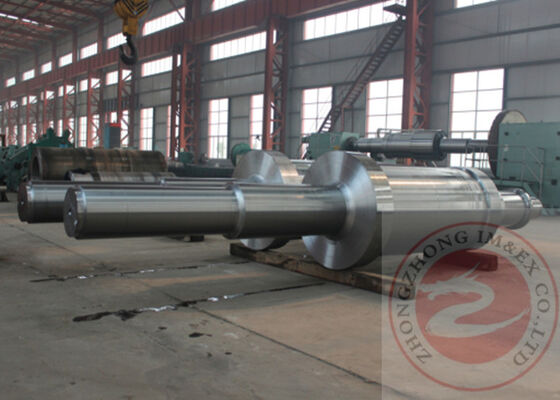

The Steam Turbine Rotor forging is a critical and highly specialized component designed for use in steam turbines within power plants. Manufactured to meet the highest standards of quality and performance, this product exemplifies advanced engineering and precision manufacturing processes. With a maximum weight capacity of 70,000 kg, the turbine rotor forging is capable of handling the demanding operational conditions found in modern power generation facilities, ensuring reliability and longevity over extended service periods.

At the heart of the manufacturing process for the steam turbine rotor forging lies a combination of forging, quenching and tempering (Q+T), heat stress treatment (HST), rigorous inspection, and precision machining. Each stage is meticulously controlled to guarantee that the turbine rotor achieves optimal mechanical properties, dimensional accuracy, and structural integrity. The forging process itself involves deforming the raw material under high pressure to produce a dense, uniform grain structure with a forging ratio of ≥3.5, which significantly enhances the strength and fatigue resistance of the turbine rotor. This ensures that the rotor can withstand the intense thermal and mechanical stresses encountered during operation.

The material standards adhered to in the production of this turbine rotor forging are comprehensive and internationally recognized, including EN, ASTM, GB, and ISO specifications. These standards ensure that the materials used not only meet stringent chemical composition requirements but also exhibit superior mechanical properties such as tensile strength, toughness, and resistance to creep and corrosion. By conforming to these global standards, the turbine rotor forging is suitable for deployment in diverse geographic regions and power plant configurations, providing versatility and assurance of quality to end users.

Applications of the steam turbine rotor forging are primarily centered on steam turbines used in power plants, where they play a pivotal role in converting thermal energy from steam into mechanical energy for electricity generation. The turbine rotor’s design and manufacturing precision directly influence the efficiency and reliability of the entire turbine assembly. Its robust construction allows it to function effectively under extreme conditions, including high rotational speeds, elevated temperatures, and fluctuating loads, which are typical in power plant operations. This durability minimizes downtime and maintenance costs, thereby enhancing overall plant productivity.

Inspection procedures during the manufacturing process are comprehensive and include both non-destructive testing and dimensional verification to detect any internal or surface defects. This ensures that each turbine rotor forging meets stringent quality criteria before proceeding to the final machining phase. Precision machining then refines the component to exact specifications, ensuring perfect alignment and balance which are crucial for the turbine rotor’s optimal performance and longevity.

In summary, the steam turbine rotor forging is an indispensable component engineered to meet the highest standards of durability, performance, and safety. With a maximum weight of 70,000 kg, a forging ratio of at least 3.5, and adherence to EN, ASTM, GB, and ISO material standards, this turbine rotor is ideally suited for demanding power plant environments. The comprehensive manufacturing process, including forging, Q+T, HST, inspection, and machining, ensures the turbine rotor delivers exceptional mechanical properties and operational reliability. Consequently, this turbine rotor forging is a cornerstone in the efficient and sustainable generation of power through steam turbines worldwide.

Technical Parameters:

Applications:

The Steam Turbine Rotor forging product, originating from China, is an essential component designed to meet the rigorous demands of modern power generation. With a maximum weight capacity of 70,000 kg, this turbine rotor is engineered to provide exceptional strength and durability in high-stress environments. The delivery condition of the product includes quenching and tempering, which ensures optimal hardness ranging from HRC 28 to 35, making it suitable for the intense operational conditions within steam turbines.

This turbine rotor is specifically crafted for steam turbines used in power plants, playing a critical role in converting thermal energy from steam into mechanical energy. The dimensions of the turbine rotor, with an outer diameter of 2000 mm and a length of 10,000 mm, allow it to fit large-scale turbines typical in thermal power stations. The robust construction and precise manufacturing processes ensure that the turbine rotor can withstand high rotational speeds and thermal stresses without compromising performance or safety.

Application occasions for this turbine rotor include new power plant installations, where reliability and efficiency are paramount. It is also ideal for turbine rotor replacements during scheduled maintenance or upgrades, helping to extend the operational life of existing steam turbines. Power plants seeking to improve their output efficiency and reduce downtime find this turbine rotor an invaluable asset due to its superior mechanical properties and dimensional accuracy.

In scenarios involving harsh operating conditions such as high temperature, pressure, and continuous operation, the turbine rotor maintains its integrity and performance. Its quenching and tempering treatment contribute to enhanced wear resistance and fatigue strength, which are crucial for long-term service in steam turbines. Additionally, the turbine rotor’s design accommodates various turbine configurations, making it versatile for different power generation setups.

Overall, the steam turbine rotor forging product from China is a high-quality solution tailored for the power generation industry. It ensures optimal performance, reliability, and longevity in steam turbines, solidifying its role as a vital component in the efficient generation of electricity worldwide.

Customization:

Our Steam Turbine Rotor forging products are proudly made in China, offering a length range from 2000mm to 20000mm to meet diverse project requirements. Manufactured in accordance with international material standards including EN, ASTM, GB, and ISO, each Turbine Rotor is crafted using advanced forging technology.

We utilize an 8000T Open Die Hydropress for precise forging, ensuring the structural integrity and performance of every Turbine Rotor. Our comprehensive manufacturing process includes forging, quenching and tempering (Q+T), high-speed turning (HST), thorough inspection, and machining to deliver superior quality rotors.

Designed specifically for steam turbines in power plants, our Turbine Rotor forgings provide reliable and efficient performance under demanding operational conditions. Trust our expertise to supply customized Turbine Rotor solutions tailored to your power generation needs.

Support and Services:

Our Steam Turbine Rotor Forging product is backed by comprehensive technical support and services designed to ensure optimal performance and longevity. We provide detailed guidance on installation, operation, and maintenance to help you maximize the efficiency of your steam turbine rotor.

Our team of experienced engineers is available to assist with troubleshooting, performance analysis, and any technical inquiries related to the rotor forging. We also offer customized solutions tailored to your specific operational requirements.

Regular inspections and condition monitoring services are recommended to detect potential issues early and prevent unplanned downtime. Additionally, we provide refurbishment and repair services to extend the service life of your turbine rotor.

We are committed to delivering high-quality products and exceptional after-sales support to ensure your complete satisfaction and the reliable operation of your steam turbine system.
