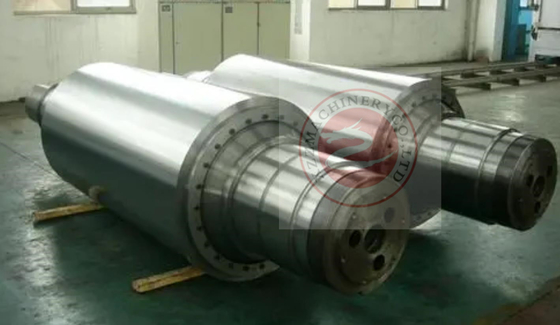

ASTM EN GB Custom back up roller, working roller, intermediate roller For Metallurgical Equipmen, mill machinery
Place of Origin | China |
---|---|
Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
Minimum Order Quantity | 1 pcs |
Price | Contact Jennifer |
Packaging Details | Fumigation-free wood package or steel package |
Delivery Time | Dependent on the exact required product |
Payment Terms | T/T, L/C, Western Union, Money Gram |
Supply Ability | 100 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xASTM EN GB Custom Roll Forming, Alloy Steel Forging Roller For Metallurgical Equipmen
Quick Detail:
1. Back up roller, working roller, intermediate roller For Metallurgical Equipmen, mill machinery
2. Alloy steel, carbon steel or as per customer’s requirements
3. Mainly applied in metallurgical equipment
Description:
1. The forged hot roll is mainly used in metallurgical machinery, such us cold roller, hot roller, rolling machine, etc.
2. With character of high strength, high heat resistance and high corrosion resistance, it is widely applied in
metallurgical equipment or rolling machine.
3. It could be manufactured to rough machined or finish machined as per your requirement.
4. With all precise testing device for chemical analysis, dimensions, UT, mechanical properties, etc.
Specifications:
Item |
ASTM EN GB Custom Roll Forming,back up roller Alloy Steel Forging Roller For Metallurgical Equipmen |
Material |
4140, 20CrMnMo, Cr5, Cr3, 60CrMnMo, etc |
Material standard |
EN, ASTM, GB, ISO |
Dimension |
Max. OD: 1300mm, Max. Length: 15000mm |
Weight |
Max.: 150T |
Smelting process |
EF+ LF + VD(double) |
Forging & machining process |
Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→Inspection→ Rough machining→UT→2nd Heat treatment →Finished machining →Inspection |
UT Standard |
EN, ASTM, GB |
Applications:
The main working components and tools on a rolling mill that cause continuous plastic deformation of metal. The rolling roller mainly consists of three parts: the roller body, the roller neck, and the shaft head. The roll body is the middle part of the roll that actually participates in rolling metal. It has a smooth cylindrical or grooved surface. The roller neck is installed in the bearing and transmits the rolling force to the frame through the bearing seat and pressing device. The transmission end shaft head is connected to the gear seat through a connecting shaft, transmitting the rotational torque of the motor to the rolling roller. The rolls can be arranged in the form of two, three, four, or multiple rolls in the rolling mill frame.
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat
treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery.
Why us?
1) We have been in the field of forging for more than 10 years, with plenty of experience in forging and
machining different forged products.
2) With variety of forging equipments and machining devices, we are capable of producing all forgings you
need.
3) With reasonable management, we could finish forging and machining shorter time.
