Tube sheet, tube sheets, diameter tube, steel forgings, vessel forged parts
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Fumigation-free wood package or steel package |
| Delivery Time | 40 days or as per the actual inquiry |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 100 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
16Mn Alloy Steel Carbon Steel Forgings Disc For Pressure Vessel , DIN Open Die Forging
ASTM-DIN-EN Standard forgings, piston forging, pressure vessel sleeve, piston sleeve
Tube sheet, forged pressure vessel parts

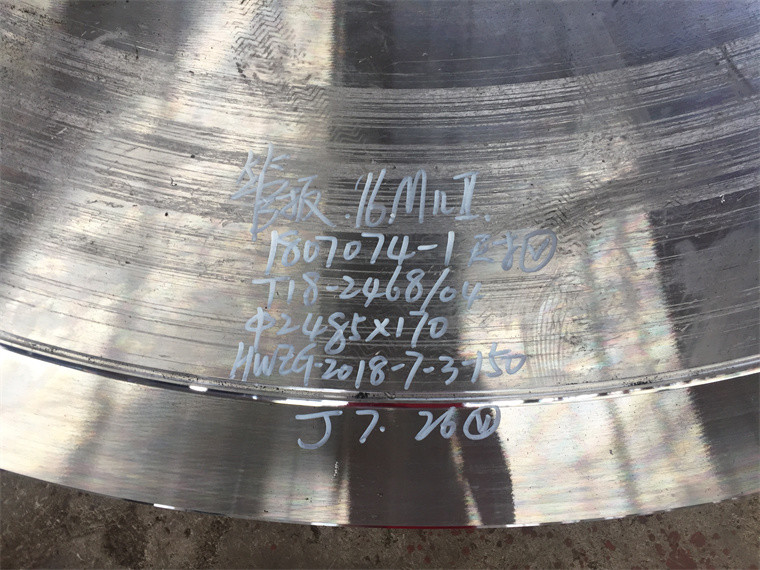

DIN open die forging 16Mn, 20MnMoNb Alloy Steel Tube Sheet Plate, pressure vessel tube sheet, Disc Forgings, tube sheet
Quick Detail:
1. Open die forging: piston forging, pressure vessel sleeve, piston sleeve, EN, ASTM, DIN standard
2. Alloy steel, carbon steel or as per customer’s requirements
3. High strength, high temperature resistance, high corrosion resistance.
Description:
Open die forgings such as piston forging, pressure vessel sleeve, piston sleeve can be made of alloy steel,
carbon steel or other kind of material as per the customer’s requirements. It conforms to the standard of ASTM, EN, DIN, GB.

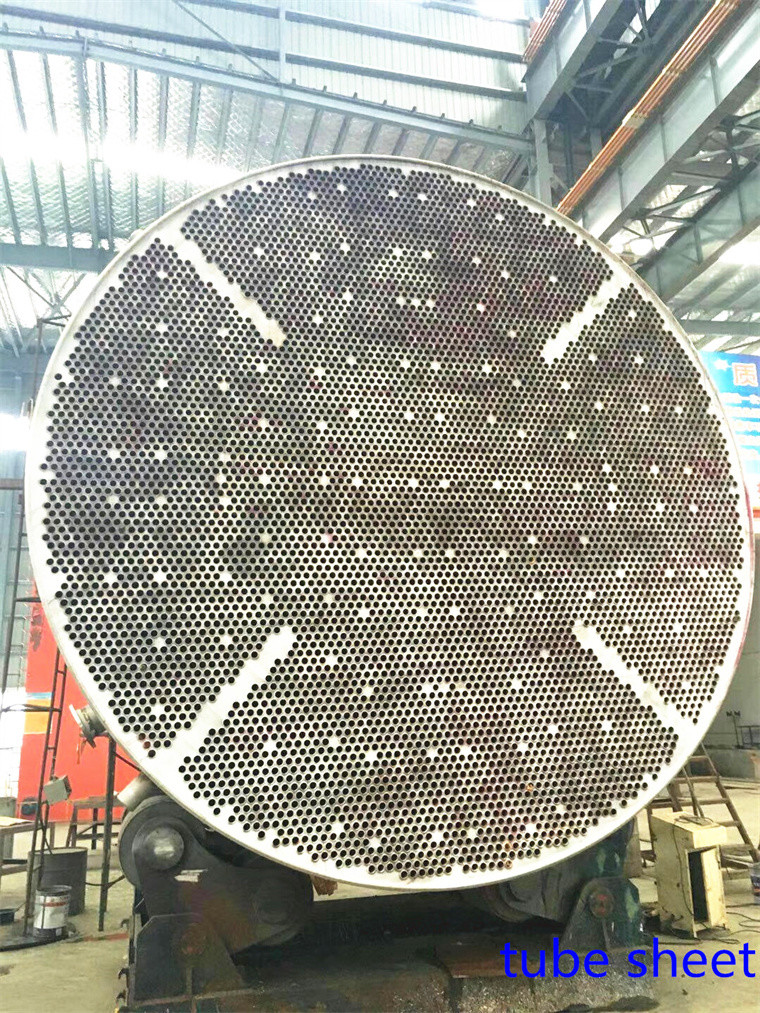

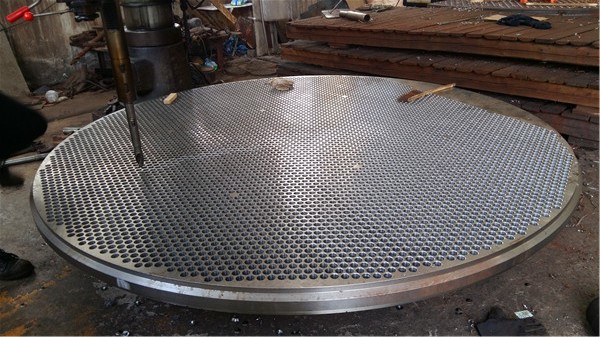

The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements.
Applications:
The piston forging, pressure vessel sleeve, piston sleeve etc. are used for pressure vessel. The forged part
can make sure the enough hardness and properties for the severe condition.
Specifications:
|
Description |
ASTM-DIN-EN standard piston forging, pressure vessel sleeve, piston sleeve |
|
material |
Alloy steel (42CrMo, 35CrMo, 40CrNiMo etc.), carbon steel, stainless steel etc. |
|
Material standard |
ASTM, ISO and EN etc. |
|
Dimension |
Max.OD: 2000mm Max. Length: 15000mm |
|
Weight |
Max. 100 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
ASTM A388 or EN10228 |
Competitive Advantage:
1. Good mechanical properties: tensile strength, yield strength, hardness etc.
2. NDT: Visual inspection, UT, MT or PT when necessary
3. Raw material control process
Why us?
1) We have an optimistic team, which will help to finish producing efficiently, so guaranteeing delivery in time.
2) We own good reputation all over the world, no matter in quality or delivery time or packaging.
3) With enough experience of forging different material, we could provide solutions.
