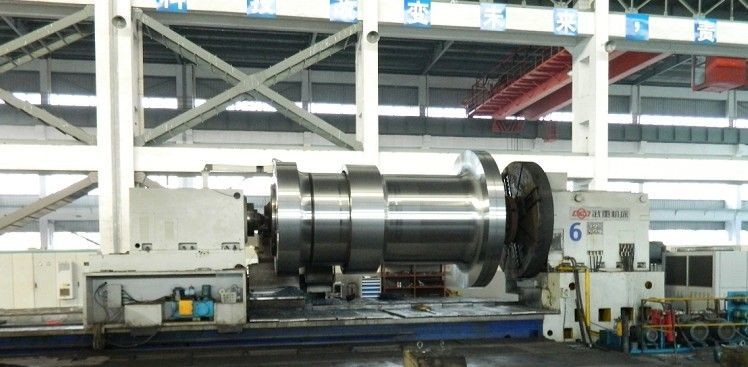

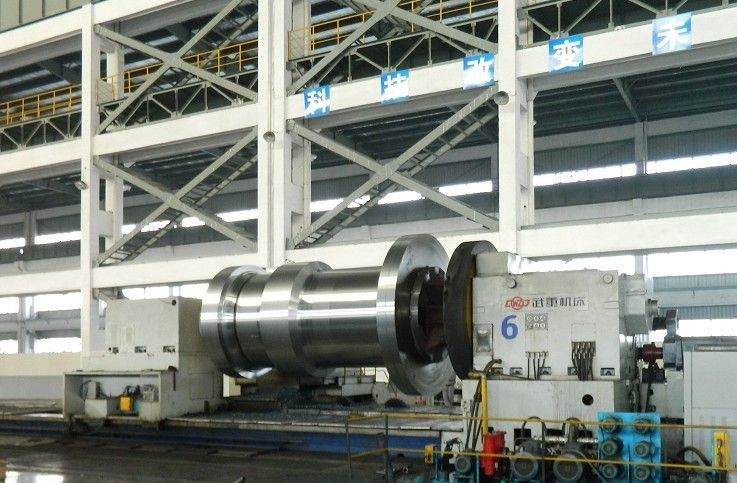

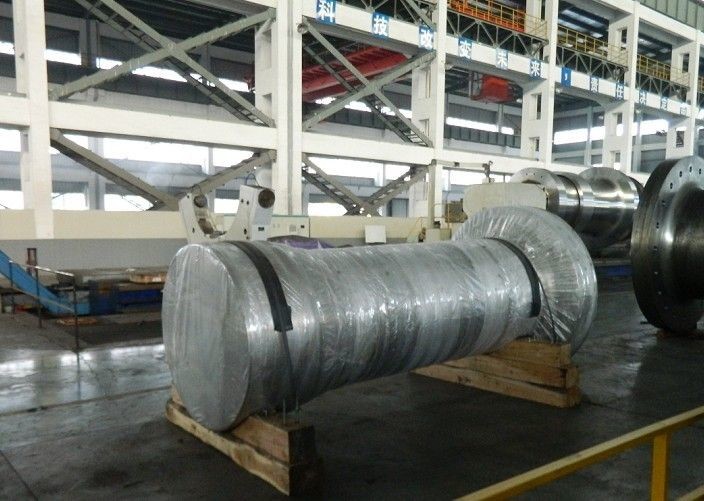

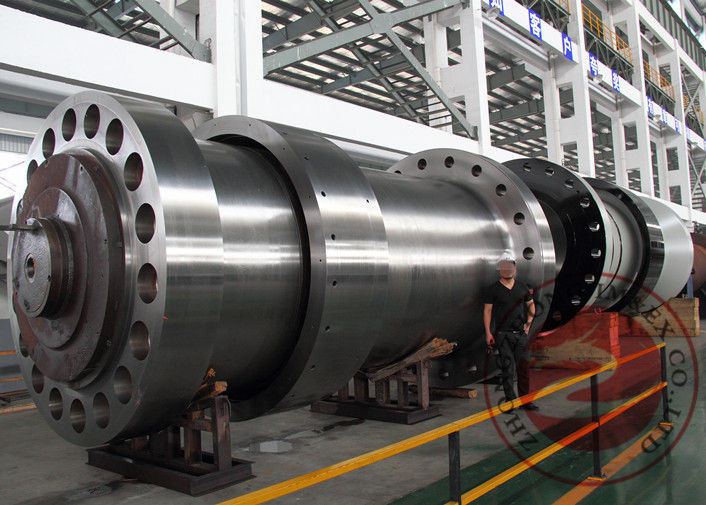

Electric Machinery Hydraulic Turbine Main Shaft Forging 100T OEM , High Precision





Max. Weight of 100T high wear resistance alloy steel forged hydraulic turbine main shaft





Quick Detail:



1. Hydraulic turbine main shaft, hydraulic generator and water turbine main axis, main shaft for hydraulic

turbine

2. Max. OD: 2000mm, Max. L: 12000mm, Max. GW: 100T

3. Mainly applied in electric machinery, hydraulic machinery & ancillary equipment





Description:



1. The hydraulic turbine main shaft is mainly used in hydro-electric power generating equipment.

2. It is of high strength, high temperature resistance and high resistance to corrosion.

3. It could be machined to rough machined or finish machined based on drawing or customers’ requirement.

4. With all precise testing device for chemical analysis, dimensions, UT, mechanical properties, etc.



Specifications:



Item Hydraulic turbine main shaft
Material Mainly 20SiMn, alloy steel
Material standard EN, ASTM, GB, ISO
Dimension Max. OD: 2000mm, Max. Length: 12000mm
Weight Max.: 100T
Smelting process EF+ LF + VD
Forging & machining process

Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→

Inspection→Rough machining→UT→2nd Heat treatment →

Finished machining →Inspection
UT Standard EN, ASTM, GB







Applications:



Hydraulic turbine main shaft is mainly used for manufacturing power generator equipment.





Competitive Advantage:



Quality control and management to the whole produce process, including ingot smelting, forging, heat

treatment, machining and strictly final inspection prior to delivery.

Excellent product quality and service, competitive price, “in-time” delivery.
