Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine

  • Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine
  • Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine
  • Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine
  • Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine
Place of Origin China
Brand Name XZZ
Certification N/A
Model Number N/A
Minimum Order Quantity 1 piece
Price USD 200-20000 per piece
Packaging Details Plastic film wrapped first, then iron and wood pallet. All wood to fumigated in accordance with ISPM 15.
Delivery Time 30-60 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 10 pieces per months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

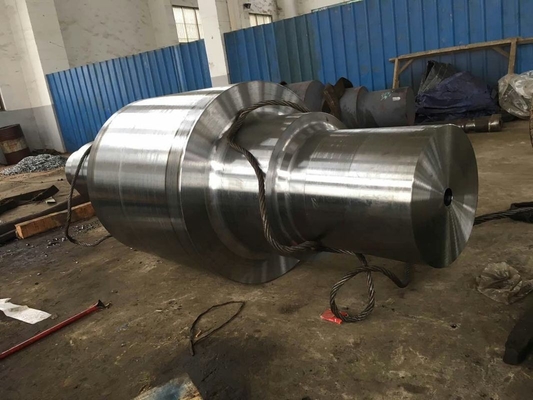

Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine




Open die forging, wind power forging, coupling forging, tower ring, ring flange

Steel forgings: wind power part forging, shaft forging, main shaft, wind shaft, wind turbine


Quick Detail:

1. Open die forging, wind power forging, coupling forging, tower ring, ring flange are used for wind power

industry.

2. Alloy steel (42CrMo4, 42CrMoHM etc.), carbon steel or as per customer’s requirements

3. Customized services, manufacturing according to your specific requirements.


Description:

Open die forging, wind power forging, coupling forging, tower ring, ring flange are used for wind power industry.


The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in
accordance with the standard of ASTM A668/A668-96 and JB/T1270-2002.


The product can be provided as per your drawing or specified requirements.
Industrial Ring Coupling Forged Steel Open Die Forging For Wind TurbineIndustrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine


Specifications:

Description Open die forging, wind power forging, coupling forging, tower ring, ring flange
material Alloy steel (42CrMo4, 42CrMoHM etc.), carbon steel or as per customer’s requirements
Material standard ASTM or GB/T3077-1999
Dimension Max. OD: 7000mm
Weight Max. 100 ton
Smelting Process: EF+LF + VD
Process Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough
machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228




Applications:

Open die forging, wind power forging, coupling forging, tower ring, ring flange are used for wind power industry.


Competitive Advantage:

Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment,
machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery


Why us?

1. Short production time, “in-time” delivery;

2. We can provide the steel forgings whatever size, material or type as per your requirements;

3. Good quality and competitive price

4. Customized services, manufacturing according to your specific requirements.
The steel forgings used for wind power industry are our main products, we have much experience in this industry.
And the Customers feel satisfied with our products and service.
Industrial Ring Coupling Forged Steel Open Die Forging For Wind Turbine
