Hydraulic Press Forged Spindle , Large Gear Ring Flange Forging ASTM standard
| Place of Origin | China |
|---|---|
| Brand Name | XZZ |
| Certification | N/A |
| Model Number | N/A |
| Minimum Order Quantity | 1 piece |
| Price | USD 200-10000 per piece |

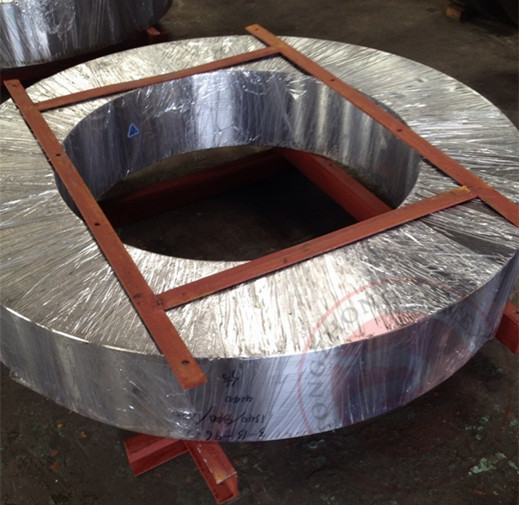

| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in accordance with ISPM 15 |
| Delivery Time | 20-50 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 100 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

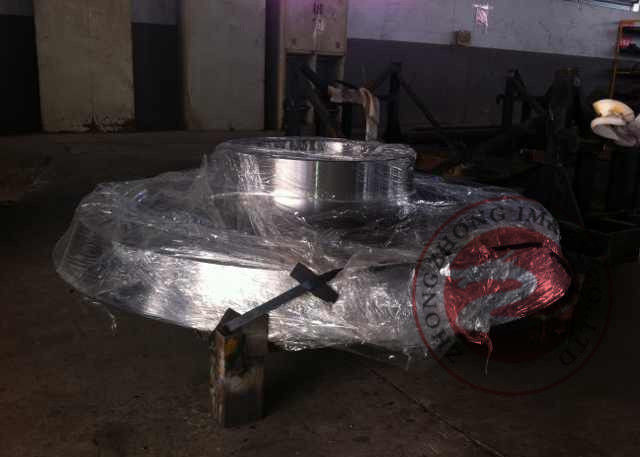

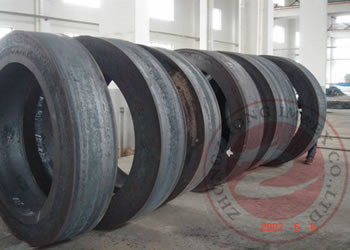

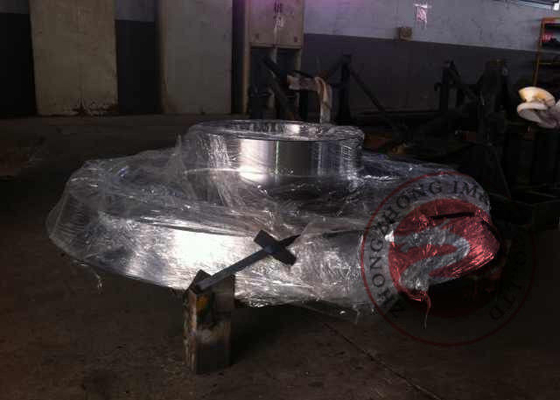

Hydraulic Press Forged Spindle , Large Gear Ring Flange Forging ASTM standard

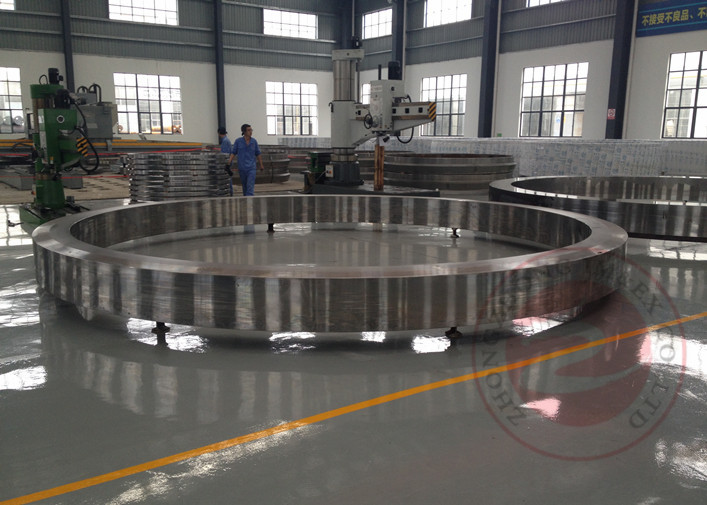

ASTM standard maximum OD of 10000mm forged large gear rings,wind power gear ring, ring flange
Steel forgings: wind power part forging, shaft forging, main shaft, wind shaft, wind turbine
Quick Detail:
1. EN, ASTM, DIN standard
2. Maximum OD of 10000mm forged large gear rings, wind power gear ring, ring flange
3. Material: alloy steel, carbon steel, etc
Description:
1. The large gear rings are widely used for wind power industry, it has advantage of high strength, high
temperature resistance, high corrosion resistance.
2. The manufacturing equipment is 16~185MN hydraulic press, the forging ratio >3, the technical condition
complies with the standard of EN, ASTM, and DIN etc.
3. The product can be proof machined or finish machined as per your drawing or specified requirements.
Specifications:
| Item | gear rings, ring flange |
| Material | 4340, 18CrNiMo7-6, 4140, 20CrMnMo |
| Material standard | EN, ASTM, DIN |
| Dimension | Max. OD: 10000mm, Max. H.: 6000mm |
| Smelting process | EF+ LF + VD |
| Forging & machining process |
Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→ Inspection→Rough machining→UT→2nd Heat treatment Finished machining →Inspection |
| UT Standard | EN, ASTM, DIN |
Applications:
The large gear rings are widely used for wind power industry.
Competitive Advantage:
1. Good mechanical properties;
2. High tensile strength;
3. Well-closed formation;
4. Comparative price;
5. High-quality production;
6. Customized services, manufacturing according to your specific requirements.
Why us?
1) We have an optimistic team, which will help to finish producing efficiently, so guaranteeing delivery in time.
2) We own good reputation all over the world, no matter in quality or delivery time or packaging.
3) With enough experience of forging different material, we could provide solutions.
