Mining Machinery Gear Racks Gear Forging Finishing Machining , gear guides, rack
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
| Delivery Time | 30 days or as per the exact product |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 200 pieces |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Mining Machinery Gear Racks Gear Forging Finishing Machining , Carbon Steel Forging
Mining machinery gear guides, gear transmission, rack
Gears, transmission gears, ring gear, gear box, flange, inner ring, an outer ring gear and other steel forgings used in mining machinery, metallurgical machinery, wind power gears, gear offshore oil platforms, marine gearbox.
Quick Detail:
1. Mining machinery gear guides, gear transmission, rack
2. Alloy steel, carbon steel or as per customer’s requirements
3. Good quality, good service, short delivery time
Description:

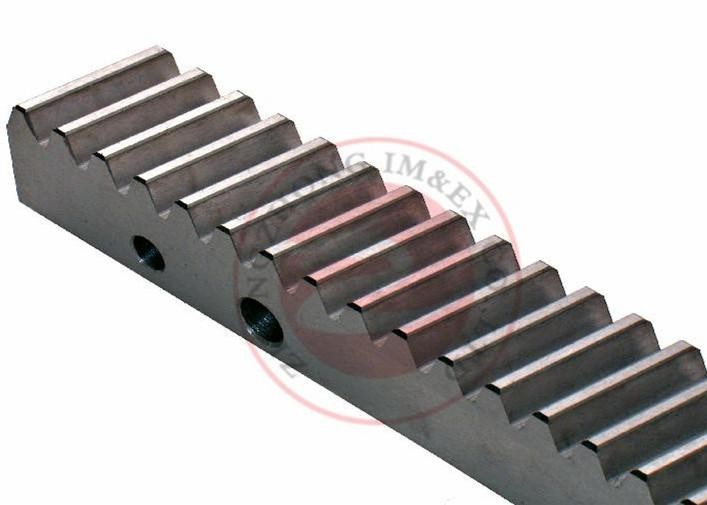

Rack into the rack spur and helical gear racks, respectively, with the spur gear and helical gears used in pairs; rack
tooth profile is a straight line rather than involute, the equivalent of the pitch circle radius is infinite cylindrical
gear.
It conforms to the standard of ASTM, EN, DIN, GB.

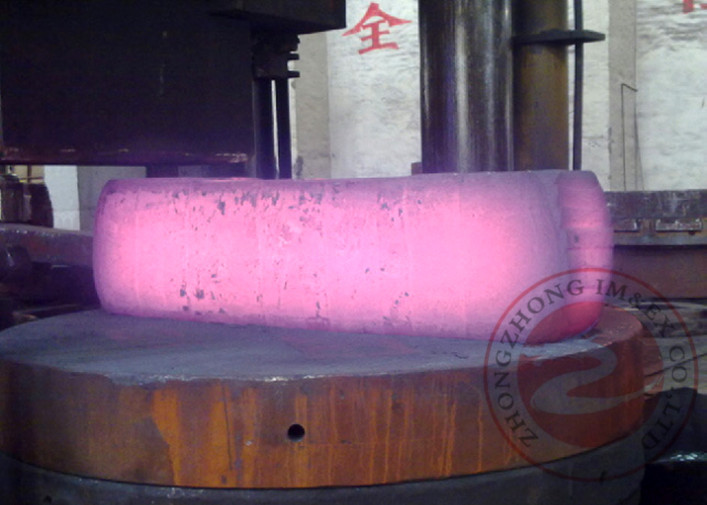

The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in
accordance with the standard of ASTM, EN, DIN, GB.
Applications:
Used in mining machinery, metallurgical machinery, offshore platforms, rail connections and other gear
industry
Specifications:
|
Description |
Mining machinery gear guides, gear transmission, rack |
|
material |
Alloy steel (4140, 42CrMo4, 4340,18CrNiMo7-6 etc.), carbon steel, stainless steel etc. |
|
Material standard |
ASTM ,GB,EN,ISO |
|
Dimension |
Max.W: 2000mm Max. Length: 15000mm |
|
Weight |
Max. 50 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
ASTM A388 or EN10228 |
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat
treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Why US?
1. Short production time, “in-time” delivery;
2. We can provide the steel forgings whatever size, material or type as per your requirements;
3. Good quality and competitive price
Years of forging, machining, precision gears, rack of production experience and perfect processing equipment,
is the foundation of our product quality control.
