OEM Custom Carbon Steel Ring Flange Forging / Forged Slew Bearing , Height 1500mm
Place of Origin | China |
---|---|
Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
Minimum Order Quantity | 1 piece |
Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
Delivery Time | 30 days or as per the exact product |
Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
Supply Ability | 200 pieces |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOEM Custom Carbon Steel Ring Flange Forging / Forged Slew Bearing , Height 1500mm

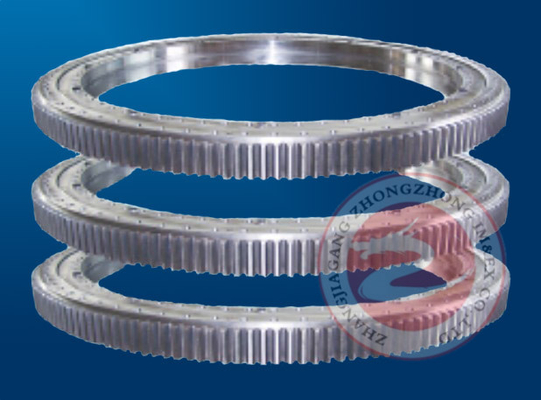

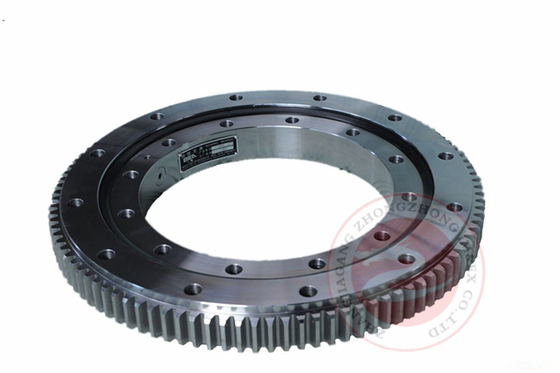

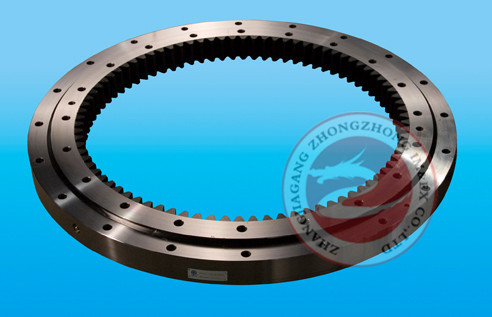

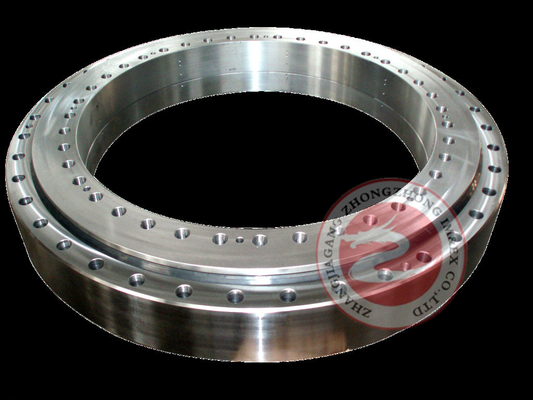

Slew bearing, yaw bearing, bearing ring, bearing flange, slewing ring bearing, turntable bearing, slewing ring and steel flange forging
Quick Detail:
1. Slew bearing, yaw bearing, bearing ring, bearing flange, slewing ring bearing, turntable bearing, slewing ring and steel flange forging
2. Alloy steel, carbon steel or as per customer’s requirements
3. Non-standard and common or uncommon sizes diameter flange
Description:
Slew bearing, yaw bearing, bearing ring, bearing flange, slewing ring bearing, turntable bearing, slewing ring and steel flange forging can be made of alloy steel, carbon steel or other kind of material as per the customer’s requirements. It conforms to the standard of ASTM, EN, DIN, GB.
The production flow chart:
Specifications:
Description | Slew bearing, yaw bearing, bearing ring, bearing flange, slewing ring bearing, turntable bearing, slewing ring and steel flange forging |
material | Alloy steel (42CrMo4, 35CrMo, 40CrNiMo etc.), carbon steel or stainless steel |
Material standard | ASTM, En or ISO |
Dimension | Max.OD: 7000mm Max. thickness: 1000mm Max. height: 1500mm |
Weight | Max. 50 ton |
Smelting Process: | EF+LF + VD |
Process | Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining →UT →2nd Heat treatment →finishing machining →Inspection |
UT standard | ASTM A388 or EN10228 |
Applications:
The slewing bearing, also called slewing ring bearing, turntable bearing or slewing ring, is the joint of the machinery. The slewing bearing is a necessary important drive component between two parts need slewing movement and bear the axial force, radial force and overturning torque. With the development of industry, the slewing bearing is widely used ship& boat equipment, engineering machinery, wind power and other machinery industry.
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Why us?
Our factory is a set of product research and development, design, manufacture, sales and service as one of the large diameter rotary bearing professional manufacturers, the company strong technical force, advanced management idea, the market operation experience, is your reliable cooperation
