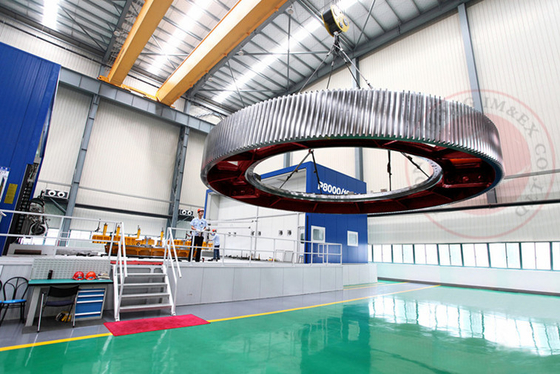

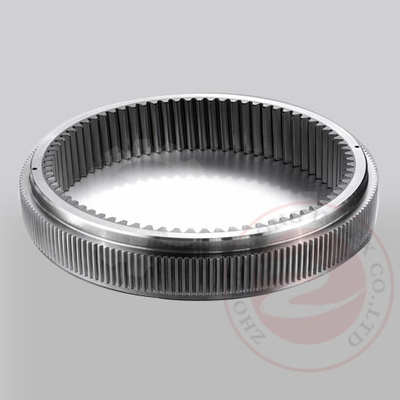

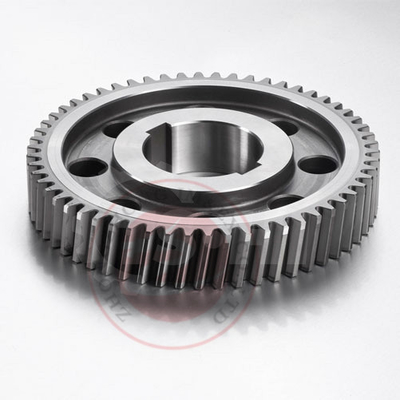

Drive gear, gear ring, gear box, gear forging, pinion, wheel gear with carbon alloy steel
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
| Delivery Time | 30 days or as per the exact product |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 100 pieces |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Forged Drive Gear Box Open Die Forging SS Finished Machining EN 10228 , OD 8000mm
Drive gear, gear ring, gear box, gear forging, pinion, wheel gear with carbon steel, alloy steel and stainless steel for mining industry
Quick Detail:
1. Max. OD: 8000mm
2. Max. thickness: 3000mm
3. Weight: max. 100T
Description:
1. Drive gear, gear ring, gear box, gear forging, pinion, wheel gear confirms to the standard EN, ASTM, and DIN etc.
2. The manufacturing equipment is 16~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of EN, ASTM, and DIN etc.
3. The product can be provided as per your drawing or specified requirements.
Specifications:
|
Item |
Drive gear, gear ring, gear box, gear forging, pinion, wheel gear |
|
Material |
4340, 18CrNiMo7-6, 4140, 20CrMnMo etc. |
|
Material standard |
EN, ASTM, DIN etc. |
|
Dimension |
Max. OD: 8000mm Max. thickness: 3000mm |
|
Weight |
Max.100 Tons |
|
Smelting process |
EF+ LF + VD |
|
Forging & machining process |
Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment →Finished machining →Inspection |
|
UT Standard |
EN 10228, ASTM, DIN |
Applications:
The gear ring is a very important part to transmit the movement and dynamic through their teeth. The gear ring forging has strong hardness and good mechanical properties, therefore, the forging of the gearing ring, gear box, opinion etc are widely used for the many kinds of industries, such as mining machinery, machine manufacturing etc.
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery.
Why us?
1) We are professional in the forging of different material, alloy steel, carbon steel, stainless steel, etc, with more than 10 years’ experience.
2) We have complete forging equipments and precise machining equipments, as well as testing equipments.
3) We are responsible in producing products in shortest time as per our clients’ requirement.
