ASTM EN DIN Heavy Steel Forgings Ring Flange Stainless Steel , Length 15000mm

Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings used for the mining machinery

Quick Detail:

        1.   Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings used for the mining machinery.

2.   Alloy steel, carbon steel or as per customer’s requirements

3.   Good quality, good service, short delivery time

Description:

The steel forgings as the gear ring, gear box, gear rack, shaft, ring flange, roller etc. used for the mining machinery can be made of alloy steel, carbon steel or other kind of material as per the customer’s requirements. It conforms to the standard of ASTM, EN, DIN, GB.
The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.

Specifications:


Description

The steel forgings as the gear ring, gear box, gear rack, shaft, ring flange, roller etc. used for the mining machinery

material

Alloy steel (42CrMo, 35CrMo, 40CrNiMo etc.), carbon steel, stainless steel etc.

Material standard

ASTM or GB/T3077-1999

Dimension

Max.OD: 9000mm

Max. Length: 15000mm

Weight

Max. 250 ton

Smelting Process:

EF+LF + VD

Process

Ingot→heat → forging → Heat treatment (Normalizing+ tempering) →

 Inspection →rough machining→UT →2nd Heat treatment →

finishing machining →Inspection

UT standard

ASTM A388 or EN10228

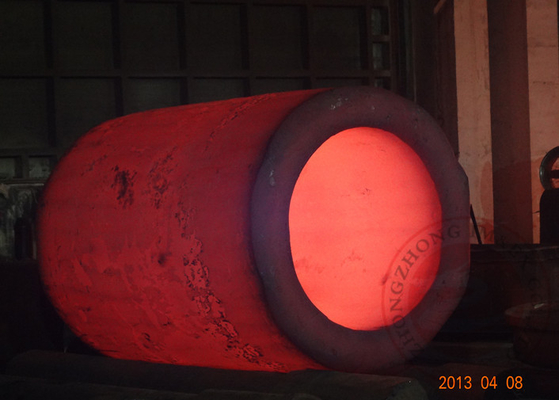

ASTM EN DIN, Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings 0

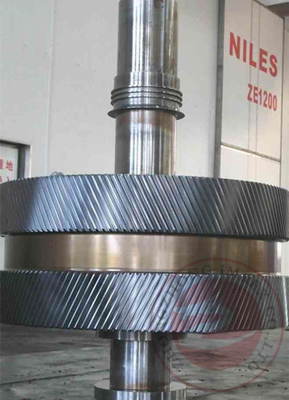

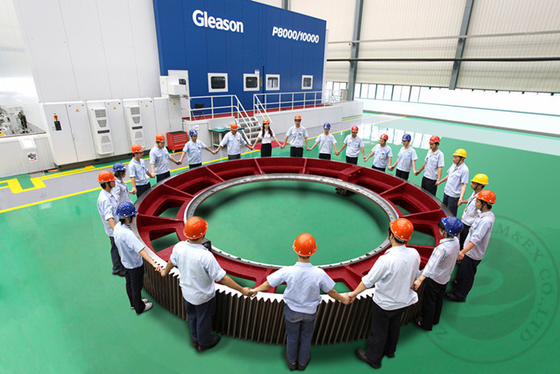

ASTM EN DIN, Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings 1ASTM EN DIN, Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings 2

Applications:

The steel forgings as the gear ring, gear box, gear rack, shaft, ring flange, roller etc. are used for the mining machinery. The forged part can make sure the enough hardness and properties for the heavy machinery and equipments.

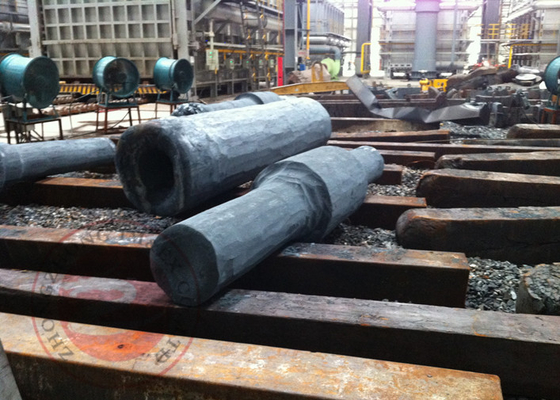

ASTM EN DIN, Gear ring, gear rack, shaft, ring flange, gear box etc. steel forgings 3

Competitive Advantage:


Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery



Why us?



1.      Short production time, “in-time” delivery;

2.      We can provide the steel forgings whatever size, material or type as per your requirements;

3.      Good quality and competitive price



We have long term business in the steel forgings for heavy machinery industry. Customers feel satisfied with our products and service.
