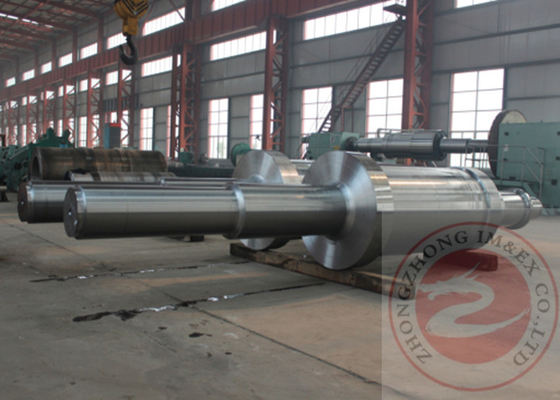

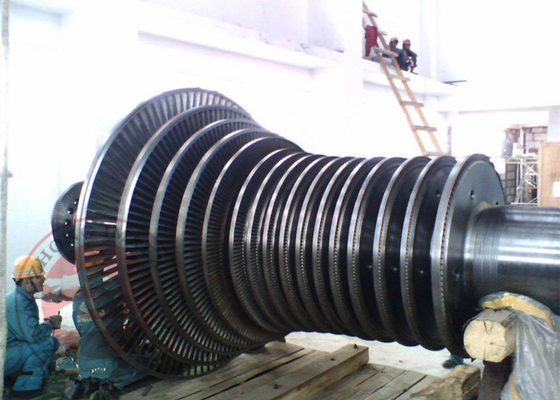

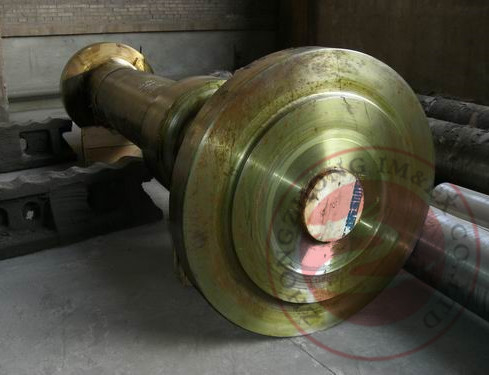

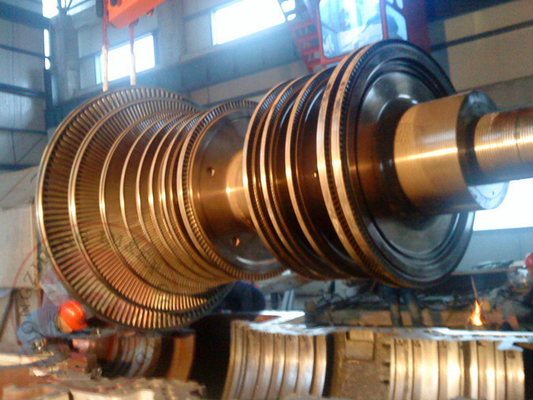

Max. 300,000KW high wear resistance 25Cr2Ni4MoV forged alloy steel steam turbine rotor, forging, forged turbine, rotor,

Quick Detail:

1. Steam turbine generator, water generator rotor, wind turbine rotor, forged turbine rotor
2. Max. OD: 1100mm, Max. L: 12000mm, Max. GW: 70T
3. Mainly applied in manufacturing power generation equipment

Description:

1. The alloy steel steam turbine rotor is mainly used in power generation equipment.

2. It is high strong, high temperature resistant and highly resistant to corrosion.

3. It could be machined to rough machined or finish machined based on drawing or customers’ requirement.

4. With all precise testing device for chemical analysis, dimensions, UT, mechanical properties, etc.

Material ready-----Ingot billets, slab, round bar----Chemical analysis----cutting----Forging----Heat treatment----Inspection----Stock of un-machined forgings----Lathe----test----Marking----Packing after machining finished

Applications:

Forged alloy steel steam turbine rotor is mainly used for manufacturing power generator equipment.

Specifications:
Item:  Alloy steel steam turbine rotor
Material:  25Cr2Ni4MoV, 30CrNi4Mo, 34CrNi3Mo, 30Cr1Mo1V
Material standard:  EN, ASTM, GB, ISO
Dimension : Max. OD: 1100mm, Max. Length: 12000mm
Weight Max.: 70T
Smelting process:  EF+ LF + VD(double)
Forging & machining process:  Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment →Finished machining →Inspection
UT Standard:  EN, ASTM, GB

Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.

Excellent product quality and service, competitive price, “in-time” delivery.
